Capabilities
End-to-End harness manufacturing under one roof and tested before it leaves our floor.
IPC/WHMA-A-620E compliant processes on machinery we own and maintain — with in-house continuity, crimp cross section analyser, functional and crimp load testing, all performed in our Bommasandra, Bengaluru facility.

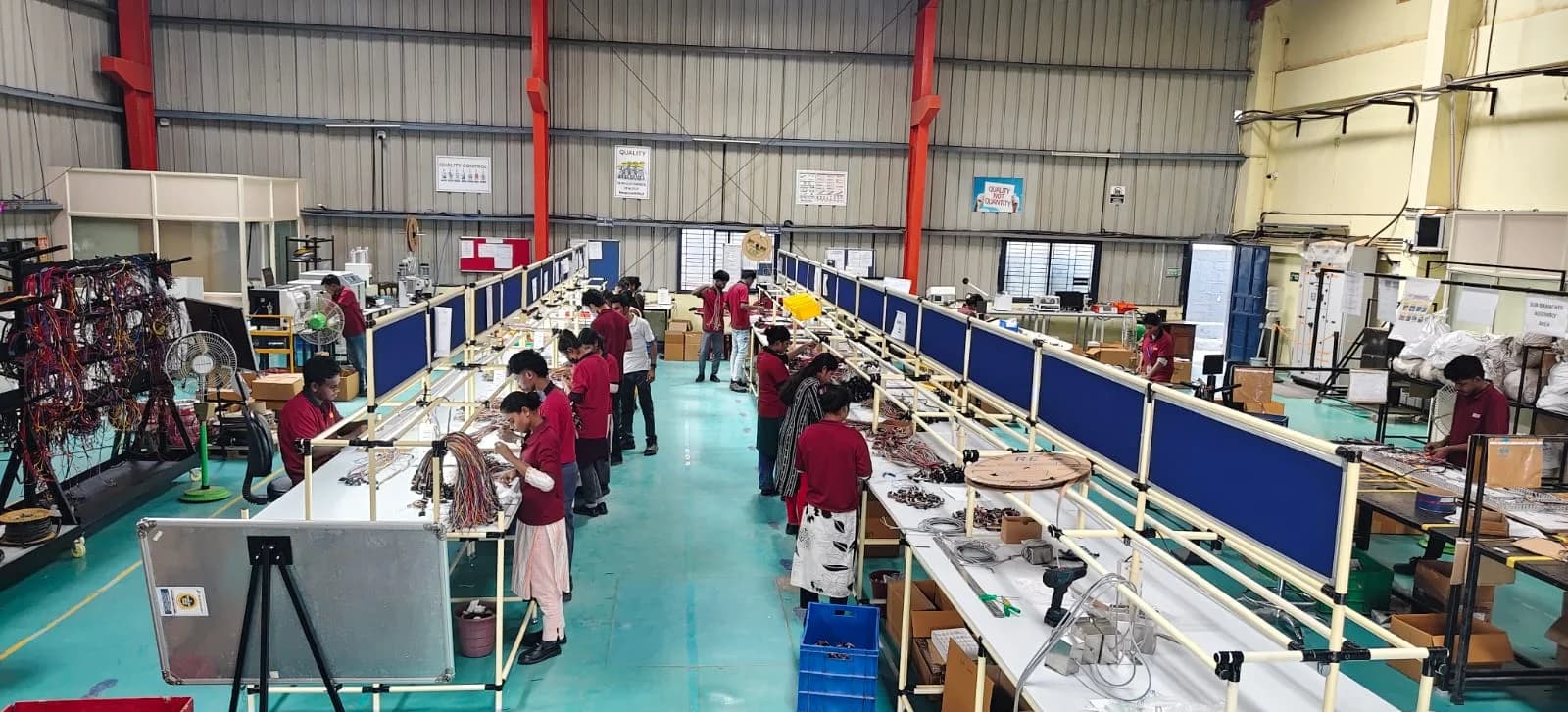

Shop floor
Our Machines in Action
Fully Automatic Wire Cutting & Crimping Machine
Start → Process → Output
Automatic Wire Stripping & Tubular Lug Crimping
Start → Process → Output
Wire Twisting
Start → Process → Output
Ultrasonic Splice Welding Machine
Start → Process → Output
Half Stripped Wire Twisting Machine
Start → Process → Output
Insulated Ring Lug Crimping Machine
Start → Process → Output
Automatic Terminal Crimping Machine
Start → Process → Output
Crimp Cross-Section Analysis
Start → Process → Output
- Have a wiring harness requirement?Send us your drawing or sample — let's solve it together.
In-house machinery
The equipment behind the discipline.
Cutting, crimping, stripping, ultrasonic splice welding, testing and marking — owned and maintained in-house, so quality and lead time stay under our control, not a subcontractor's.
01Wire Cut-Strip-HST Insertion Machine
Cuts wire to length, strips the ends and inserts heat-shrink tubing in one automated cycle.
02Tubular Lug Crimping Machine
Automatic crimping of tubular lugs and ferrules for consistent, repeatable terminations.
03Insulated Ring Lug Crimping Machine
Automatic crimping of insulated ring lugs with controlled crimp height.
04Hexagonal Power Cable Crimping Machine
Pneumatic hexagonal crimping for heavy-gauge power cables and lugs.
05Half Stripped Wire Twisting Machine
Twists the strands of half-stripped wire ends for clean termination.
06Temperature Controlled Tinning Pot
Digitally controlled solder pot for tinning wire ends at a set temperature.
07Wire Cutting & Stripping Machine
Automatically cuts wire to programmed length and strips insulation from one or both ends — high accuracy and repeatability with minimal manual effort.
08Semi-Automatic Crimping Machine
Reel-fed terminal crimping with consistent crimp height and force, for reliable electrical and mechanical connections at high output.
09Fully Automatic Double-End Crimping Machine
Measures, cuts, strips and crimps terminals on both ends in a single cycle — high-volume double-ended leads with consistent crimp quality.
10Power Crimping Machine
Crimps heavy-duty terminals, lugs and connectors for high-current, large-size cable applications that demand strong connections.
11Pneumatic Wire Stripping Machine
Foot-pedal pneumatic stripping — fast, clean, damage-free conductor exposure across a range of wire sizes with consistent strip length.
12Automatic Sleeve / HST Cutting Machine
Cuts sleeves and heat-shrink tube to length with high accuracy — uniform cut quality for insulation, protection and identification.
13Crimp Pull-Force Tester
Applies a specified pull force to crimped terminals to verify tensile strength — confirming crimps meet standard and detecting weak connections.
14Terminal Cross-Section Analyzer
Inspects crimp cross-sections under magnification for compression, strand deformation, voids and burrs — verified to IPC/WHMA-A-620E.
15Ultrasonic Splice Welding Machine
Bonds multiple copper conductors into a solid, low-resistance splice using ultrasonic energy — no solder or crimp terminals required.
16Continuity Testing Machine
Verifies wiring continuity and correctness — detecting opens, shorts, miswiring and cross-wiring against the wiring diagram.
17Label Printing Machine
Prints wire markers, barcode labels and product information — clear, durable labelling for traceability and quality control.
18Ferrule & HST Printer
Prints wire identification directly onto ferrules and heat-shrink tube — durable, smudge-resistant markings for full traceability.
19Cable Twisting Machine
Twists two or more wires into uniform twisted pairs or assemblies with a consistent pitch — better organisation and electrical performance.
Standard
IPC/WHMA-A-620E — applied end to end.
The global acceptability standard for cable and harness assembly. We build and inspect to it on every job — from strip window to final sign-off.
FAQ
Buyers usually open with these.
- Continuity is checked on every unit. Crimp cross section analyser and functional tests are run per the customer specification — typically 100% on safety-critical assemblies and sampled on simpler builds.
